Safer trolleys. Safer shoppers. Stronger business.
The LightWave Shopping Trolley Disinfecting Module uses advanced 254nm Germicidal UV-C technology to disinfect shopping trolleys and hand baskets in just 4 seconds – eliminating harmful micro-organisms without chemicals.
Create customer confidence, promote hygienic shopping environments and increase footfall with a simple, safe and sustainable solution.
Technical Overview

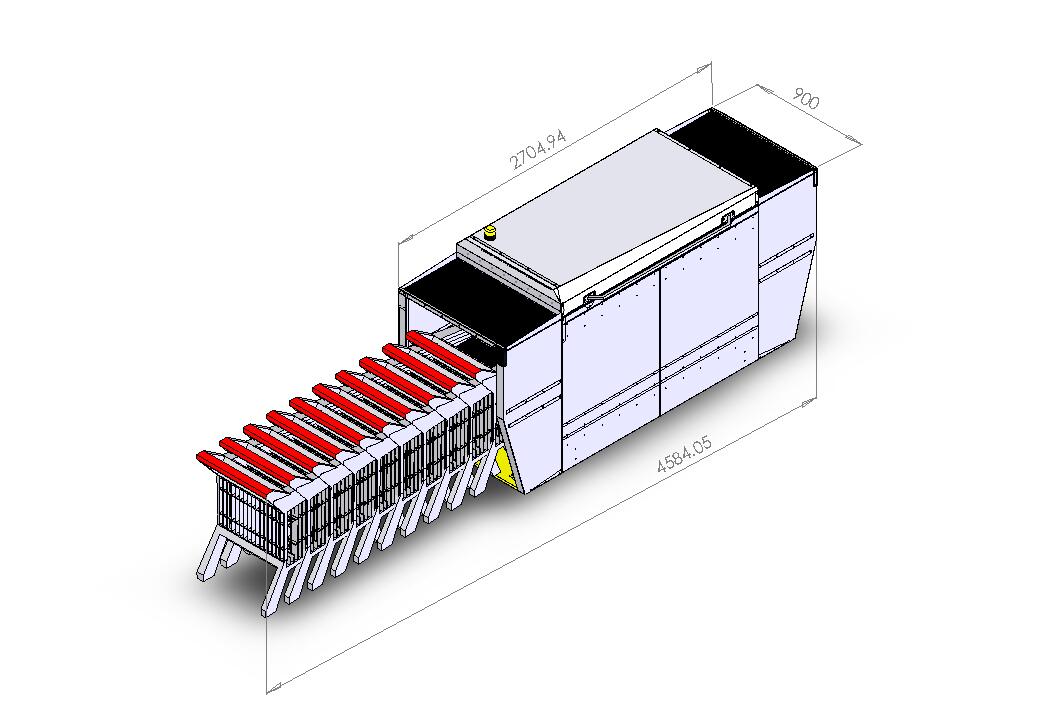

The LightWave UVC824 Disinfection Module is an Australian designed and manufactured solution that ensures shopping trolleys and hand baskets are thoroughly disinfected using 254nm Germicidal Ultraviolet (UV-C) light.
It does not use chemicals, does not produce chemical waste, and requires no disposal of cleaning waste, and requires no disposal of trolley per hour.
Designed for high capacity and ease of use, the module disfricts a train of trolleys in just 4 seconds exposure time per trolley, delivering up to 500+ trolleys per hour.

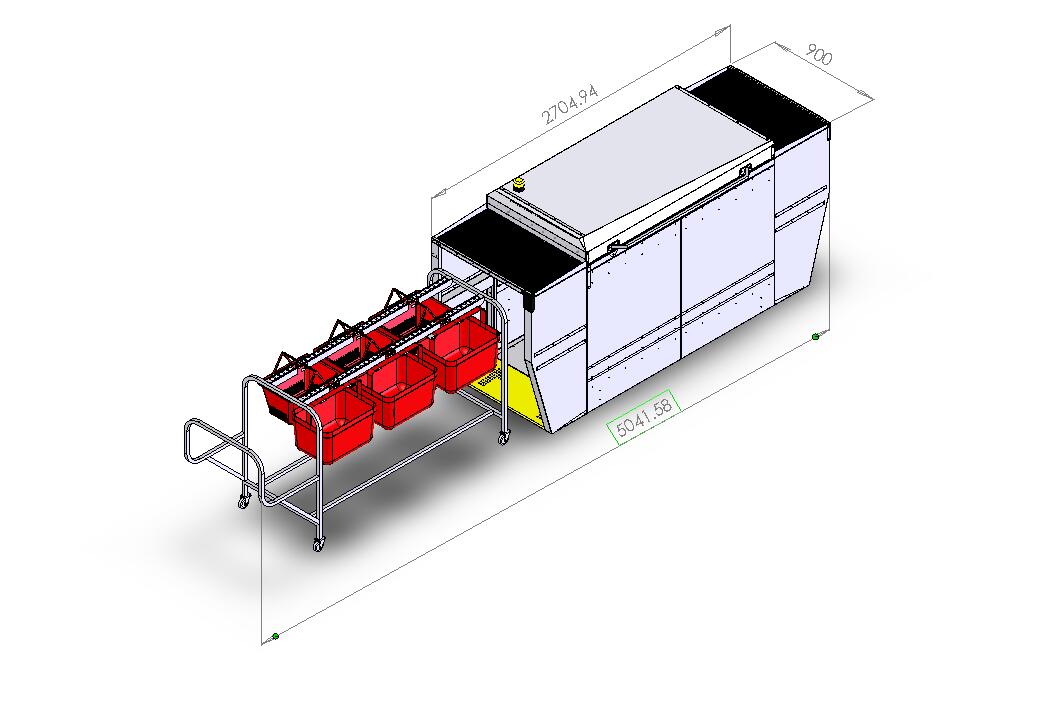

A hand basket disinfection trolley is also available, accommodating 6 hand baskets.
-
Key Specifications
Module Foot Print (L x W): 2705mm x 900mm
Power Supply: Single Phase 240 Volt
Disinfection Capacity: 500+ trolleys per hour
Minimum Trolleys at Once: 10
Exposure Time per Trolley: 4 seconds
Hand Basket Trolley Capacity: 6 baskets
Mobility: Fully mobile
-
UV Lamp Specifications (G60T15N HQ SEANP)
Base Face Length: 1554 mm
Effective Arc Length: 1473 mm
Lamp Watts: 91.7 W
Lamp Current: 425.9 Mâ
Lamp Voltage: 271.9 V
Irradiance Value @ 1 m: 277 µW/㎠
Why Choose LightWave?
Rapid Disinfection: Achieves a minimum 5 log reduction of the SARS-CoV-2 virus in just 4 seconds exposure time per trolley.
High Capacity: Capable of disinfecting 10 or more trolleys in a continuous train making the total choice for high-tragic retail environments.
Safety Assurance: Manufactured under the supervision of Australia’s Leading UVC Specialist, the UVC824 disinfection module meets the highest safety standards.
Australian Designed & Manufactured: Proudly designed and manufactured in Melbourne, Victoria.
UV Disinfection Explained
-
Germicidal ultra-violet lamps provide Log 5 reduction.
99.9% Disinfection.
DOES NOT provide Sterilisation.
-
The Percentage Disinfection Rate is achieved purely as a function of the Total UV Dose (UVW) and the Total UV Intensity as shown below. It is measured by the design of the system, i.e.
-
Total UV Dose ( µw/㎠ ) = UV intensity ( µw/㎠ ) x exposure time (seconds)
Upgrade Your Trolley Disinfection Process
Discover a smarter way to disinfect shopping trolleys and baskets with LightWave.
Contact VRM Enterprises today to learn more or request a demonstration.
